Replacement Display for the Yaesu FT-290R, FT-690R and FT-790R

So I mentioned that I reverse-engineered the FT-290R display and designed a replacement. It's PIC based, uses a 16(L)F1937. Here's the schematic. It's not pretty -- it exists to get a netlist to do the PCB layout.

I had a few 16LF1937 lying around so I added three diodes to drop the 5V down to 3.3-ish. If you use a 16F1937 you can substitute a jumper from D1 anode to D3 cathode.

The GND connection should be connected to GND, i.e. chassis ground, and not the Vss normally supplied to the display board via the connector. The easy way to do this is to remove R08 and to replace R19 with a jumper.

Bill of Materials (BoM)

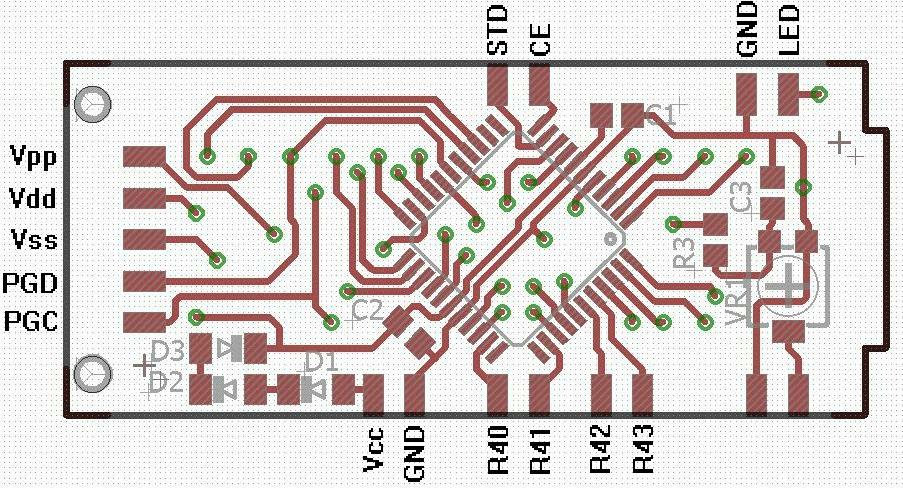

PCB layout, back side

Back layout and connections.

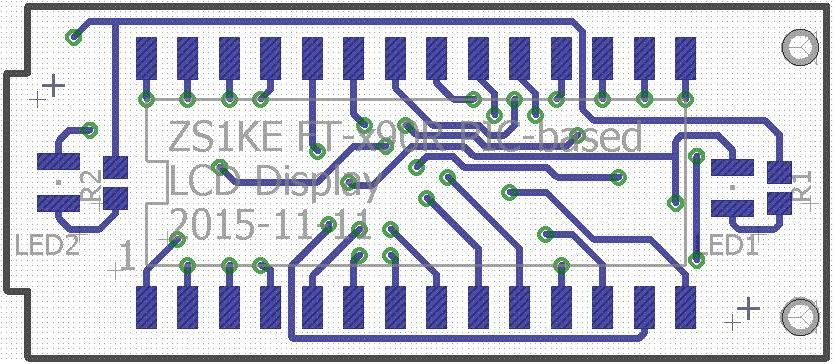

PCB layout, front side

The front layout is straightforward.

Here's the Eagle board file.

Assembly

PIC

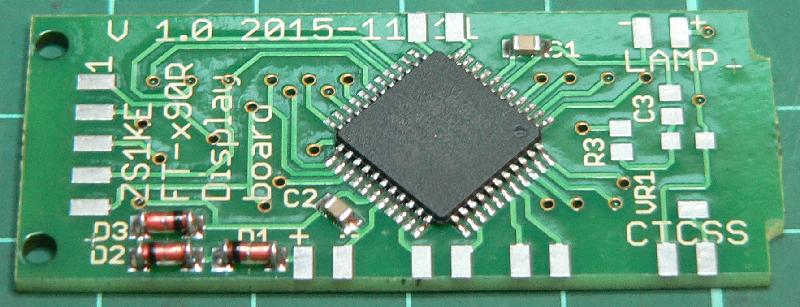

I got a professional to build this one

Pin 1 is not indicated on the PCB but it is indicated on the layout above. With the text the right way 'round pin 1 faces to the right.

MiniMELF diodes

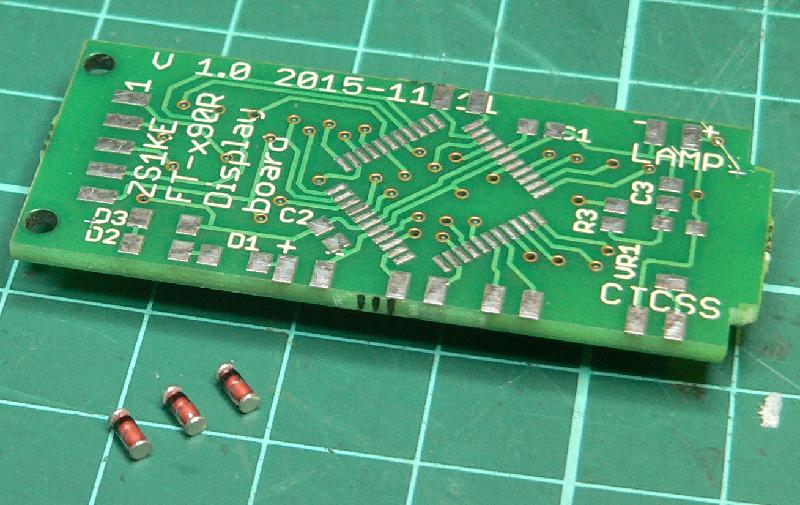

Fitting the MiniMELF diodes

The MiniMELF diodes are tricky to fit. I ended up using masking tape to hold them still while soldering.

LCD

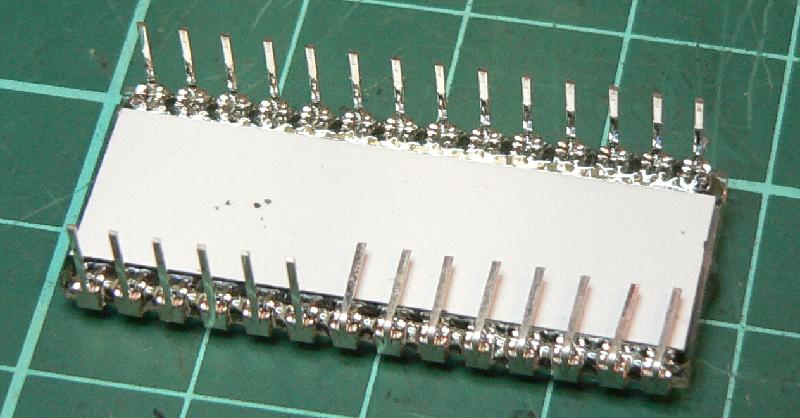

Bending the LCD legs, part 1

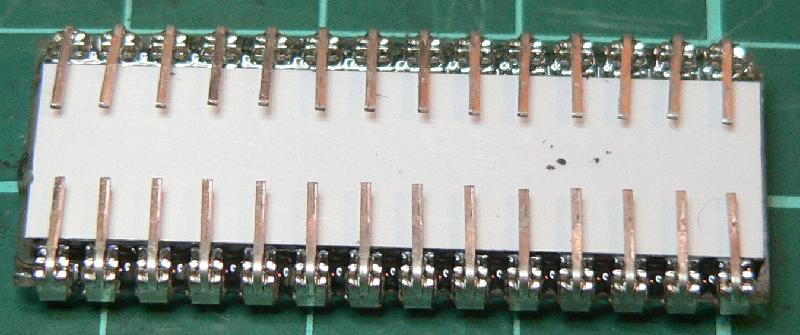

Bending the LCD legs, part 2

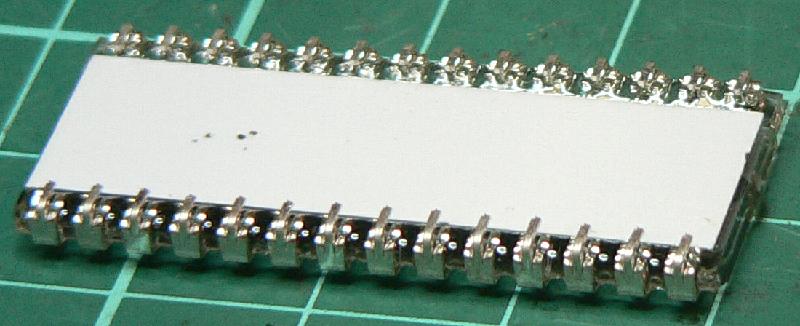

Bending the LCD legs, part 3

The legs of the LCD module have to be bent at right angles as close to the body as possible.

Be careful not to overheat the LCD while soldering. It's probably best to fit the LCD last.

Software

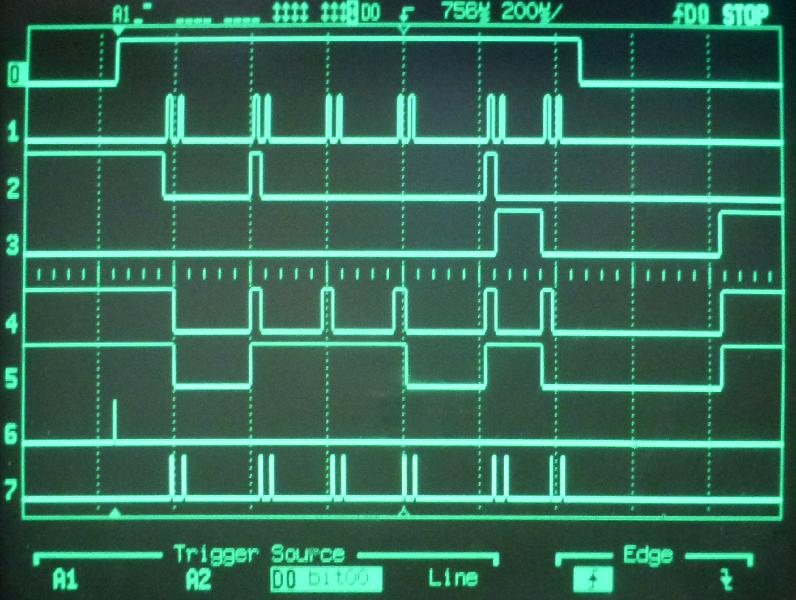

analyser capture of signals
Top to bottom, left to right

0011 0000 "0"
1011 0001 "1."
0011 0001 "1"
0011 0000 "0"
1011 0101 "5."
0010 0000 The rightmost three bits would be M, -, CLAR

Here's a logic analyser capture of the signals from the processor to the display.

CE goes high, then STD is pulsed 12 times, clocking in 4 bits each time (traces 6 and 7 are debug outputs to show that I'm detecting the CE rising edge and the STD pulses correctly).

   // enable falling edge on STD = RB2
   IOCBN2=1;
   IOCBP2=0;
   // enable rising and falling edges on CE = RB3
   IOCBN3=1;
   // enable interrupts
   IOCIE=1; // Interrupt on change (port B)
   GIE=1;   // Global int on
So I get an interrupt on the rising edge of CE, on each falling edge of STD, and on the falling edge of CE.

Here's where all the work happens.

void interrupt isr()
{
   static int index=0;
   static char disp[12]={0,0,0,0,0,0,0,0,0,0,0,0};

   PIR1=PIR2=PIR3=0;
   if (IOCIF) // STD or CE changed
   {
     if (IOCBF3==1) // CE
     {
       if (CE == 1) // On the rising edge of CE, reset the index
                    // into the array where we store the digit
                    // values (4 bits per entry)
       {
         index=0;
       }
       else // it's the falling edge - display what we stored in the array
       {
         display(disp);
       }
     }
     if (IOCBF2==1) // On the falling edge of STD, take the four
                    // bits and put them in disp[]++
     {
       if (index < 12) // because it always pays to check
       {
         disp[index] = (IN3<<3) | (IN2<<2) | (IN1<<1) | IN0;
         index++;
       }
     }
   }
   IOCBF=0; // clear IOCIF via IOCBF
}

I might be calling display() too often, but the code seems to work so...

ZS5DF

I replaced a display for ZS5DF's. It's a pain.

Radcom

Dave Crump G8GKQ springboarded this information to build an LED-based replacement display which was published in the December 2016 Radcom.

PS: From the schematic it looks as if the FT-230R uses the same display. Dunno if it's different mechanically.
